| Brand Name: | HCVsight |
| Model Number: | HCU-ZDDJ155 |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

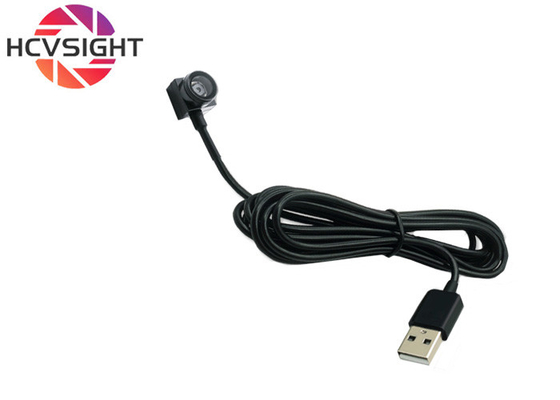

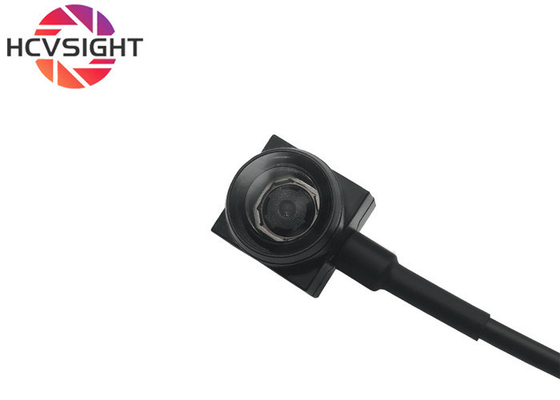

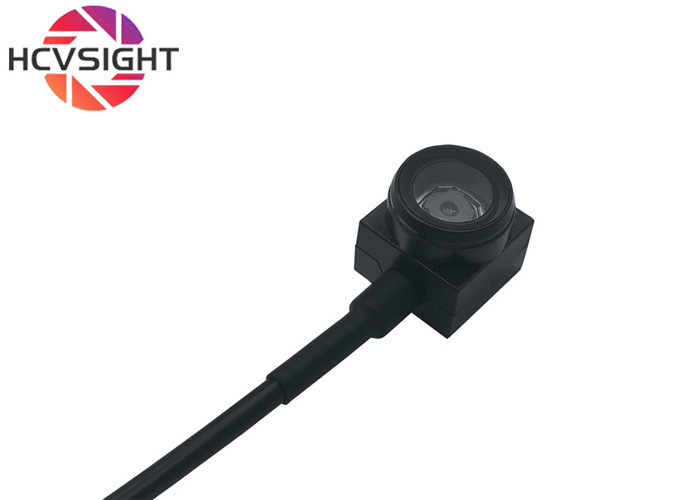

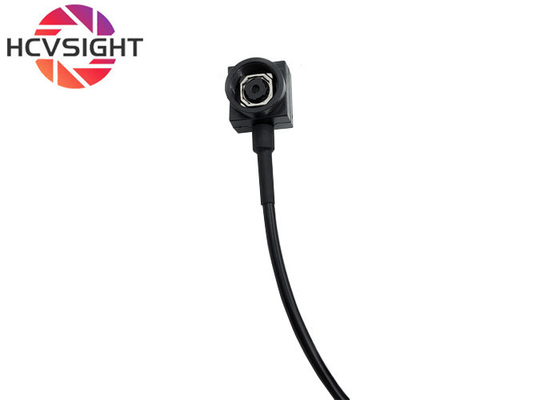

USB Camera Autofocus With Microphone 15mm Computer Video Call No Drive Raspberry Pi
This is a 5mp pixel USB2.0 camera paired with a Autofocus lens. The angle of the lens is 65 degrees, Imaging is undistorted and automatically focuses based on different distances of the object. The interface is a USB interface, and the USB cable is 1-5 meters long, with a default length of 2 meters. If you need other lengths, please contact customer service. Compatible with Android, Windows, Raspberry, and LINUX systems. The size of the shell body is 15 * 15mm.
The product is UVC protocol, suitable for external connection of smart products or embedded in machine equipment, and also suitable for engineers to develop products for use. Inserting it into a computer does not require installing a driver. After the driver is automatically installed, it can be directly called using the computer's built-in camera software. Typical application scenarios include ATM machines, electronic scales, advertising machines, self-service account opening machines, self-service printers for testing reports, self-service vending machines, etc.
| sensor | 1/4" | ||||||
| Pixel | 5MP | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 2560X1440 30fps | ||||||
| Audio | support | ||||||
| Power frequency working voltage | DC 5V | ||||||
| Product size | 15mm×15mm | ||||||
| white balance | automatic | ||||||
| working temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| model | HCU-ZZDJ155 | ||||||
| Interface type | USB2.0 | ||||||
| Night vision function | Not supported | ||||||
| lens | Effective length: 3.57mm | ||||||
| F.ON:2.0+5% | |||||||
| Distortion: <1.5% | |||||||
| Component:5E+IR | |||||||
| Angle: D=77.6° H=65.2° V=51.6° | |||||||
| Chip type | COMS | ||||||
| Support operating system | WinXP/Vista/Win7/Win8/Win10 Linux /UVC Android |
||||||
1. Plug and play: The USB interface is super convenient and avoids cumbersome driver installation.
2.Eye Contact technology:Unique eye contact technology allows you to make more natural eye contact with each other during video calls. As if the other person is beside you, make your communication more real and cordial.
3.Equipped with a lens cover and built-in microphone to protect the lens when not in use.
4.There is a built-in microphone: that you can communicate with objects through the microphone for a more natural and intuitive interactive experience.
Our camera is widely used in a variety of machine vision and equipment monitoring fields: ATM ATM, bank account opening machine, queuing and calling machine. Hospital inspection report printer, vending machine, advertising machine, all-in-one machine, electronic weighing robot, patch machine, automatic welding equipment fire water cannon, law enforcement instrument external connection, android mobile phone external camera, computer plug-in camera. Security surveillance camera. No matter what industry your needs come from, we can provide you with the most suitable video image acquisition solution.
Brand name:HCVsight
Model:HCU-ZZDJ155
Place of Origin: Shenzhen, China
Minimum order quantity: Negotiable
Price: Negotiable
Packaging details: anti-static carton bag (110mmx93mm41mm)
Delivery time: 2-3 weeks
Payment method:T/T
Supply capacity: 100000/piece/port
Color: black
Compatibility: Windows/Mac/Linux
Interface: USB 2.0
Product size:15mmx15mm
Frame rate: 30fps
Customized services: USB camera module, AHD camera module, CVBS camera module, wired network camera module, wireless wifi camera module, etc.
Pixels: 1mp, 2mp, 4mp, 5mp, 8mp, 12mp, etc. The highest pixel reaches 12 million. It has fixed focus and autofocus, and the product size is diverse. The same pixel size can be selected. The product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc. At the same time The size can be extremely small, our AHD/USB/ The CVBS camera module has no storage and transmission and is very small, the smallest of its kind on the market.
Our USB camera products come with comprehensive technical support and service to ensure you get the best experience. Our team of experts are always available to help you with any questions or queries you have about our products.
We provide the following technical support and services:
Our goal is to provide you with the highest level of customer satisfaction and support. If you need any assistance with your USB camera products, please feel free to contact us.
