| Brand Name: | HCVsight |
| Model Number: | HCU-XMY152 |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

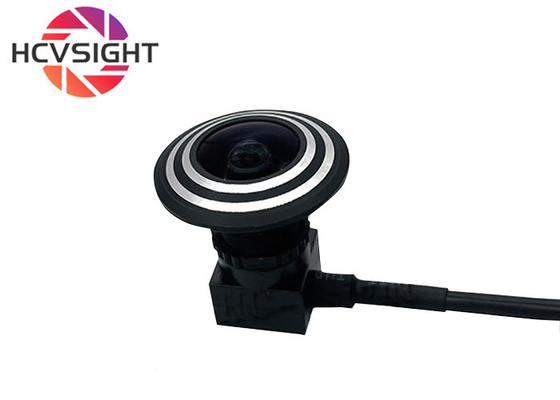

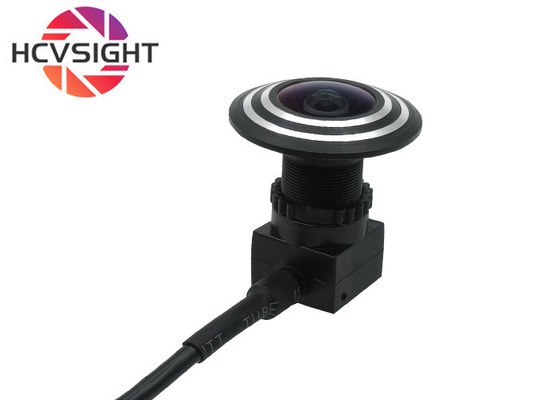

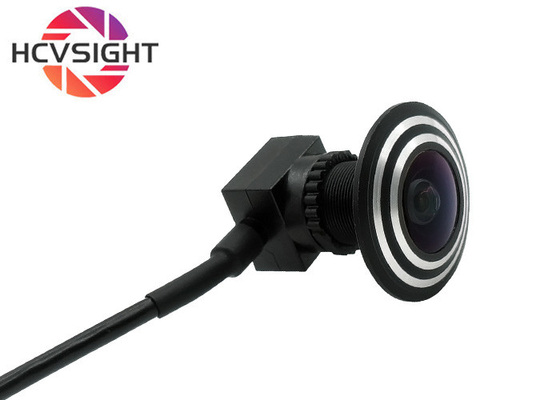

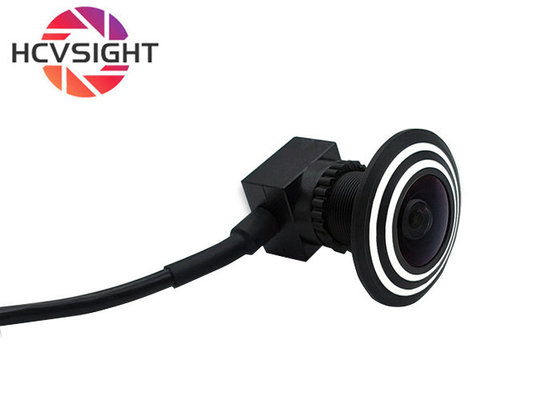

Mini 15MM Cat Eye USB Camera Wide Angle Driver-Free Machine Vision Monitoring
This USB mini 15mm cat-eye wide-angle camera is designed to meet your diverse monitoring needs. With its compact and refined appearance and powerful and practical functions, it becomes your right-hand assistant for convenient visual monitoring. It is exquisite and compact, does not take up space, and is easy to install and carry. Whether it is local monitoring of home, viewing of small office areas, or temporary monitoring arrangements in special scenarios, it can be easily competent. Drive-free design: Adopt advanced technology and has the characteristics of drive-free. No need for tedious installation programs, just connect the camera to a computer or a supported Android device (supports UVC and OTG protocols) and you can use it immediately. Equipped with a wide-angle lens, it has an excellent viewing range and can capture a wider picture. It has extensive operating system compatibility, supports Windows XP, Windows 7, Windows 8, Windows 10, and Android or higher operating systems, MAC OS or higher, and can be adapted to multiple devices to meet the use of different users. Habits and equipment environment.
| Sensor | 1/2.9" | ||||||
| Pixel | 2MP | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 1920x1080 30fps | ||||||
| Audio | nonsupport | ||||||
| Frequency operating voltage | DC 12v | ||||||
| Product dimensions | 15mmx15mm | ||||||
| White balance | Automatic | ||||||
| Operating temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| Model No | HCU-XMY152 | ||||||
| Intenface type | USB2.0 | ||||||
| USB cable length | Default 2m | ||||||
| Lens | EFL:2.36mm | ||||||
| F.ON:2.0 | |||||||
| EFL:4.5mm | |||||||
| Element:6E+IR650 | |||||||
| Angle:D=192° H=142° V=100° | |||||||
| Thread:M12 | |||||||
| Chip Type | COMS | ||||||
| Support OS | WinXP/Vista/Win7/Win8/Win10 | ||||||
| Linux with UVC Android |
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2,Good compatibility, USB camera is compatible with various operating systems, windows system, Android system, linux system, Raspberry Pi, etc.
3, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
4,Plug and play:The USB interface is super convenient to avoid cumbersome drive installation.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Brand Name: HCVsight
Model Number: HCU-XMY152
Place of Origin: ShenZhen,China
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Anti-static bag in Paper box(110mmx93mm41mm)
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Color: Black
Compatibility: Windows/Mac/Linux
Interface: USB 2.0
Product dimensions: 15mmx15mm
Frame Rate: 30fps
Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.
High pixels, 1mp 2mp 4mp 5mp 8mp 12mp and other highest pixel reached 12 million. There is a fixed focal length and autofocus, Product size is diversified, the same pixel size can be selected, the product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc.At the same time, the size can be extremely small, and it can be said that the smallest products on the market currently (only AHD / USB / CVBS, no storage, no transmission function).Which can be independently selected according to the application scenario.
Our USB Camera product comes with comprehensive technical support and services to ensure that you have the best experience possible. Our team of experts is always available to help you with any issues or questions you may have regarding the product.
We offer the following technical support and services:
Our goal is to provide you with the highest level of customer satisfaction and support. Please do not hesitate to contact us if you need any assistance with your USB Camera product.
