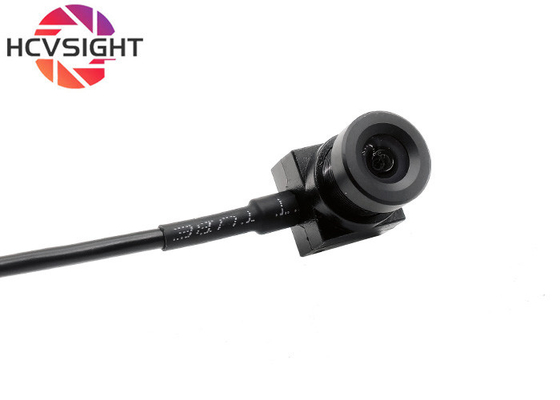

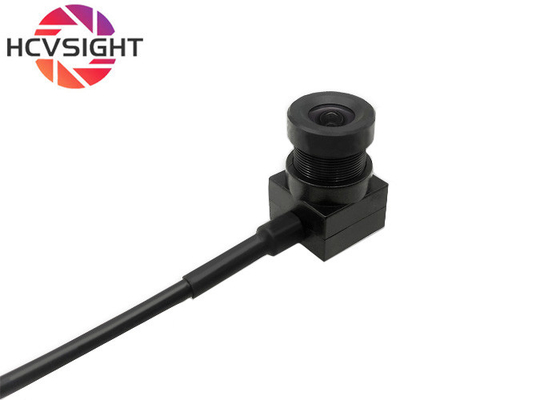

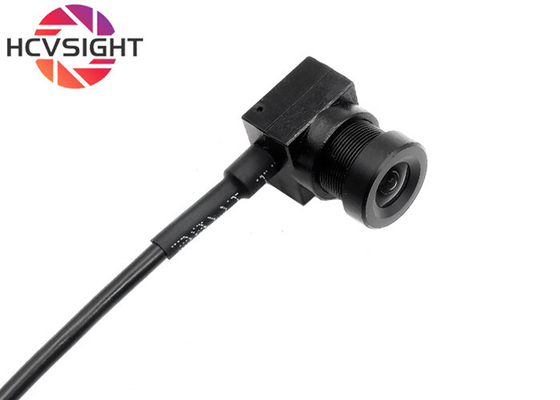

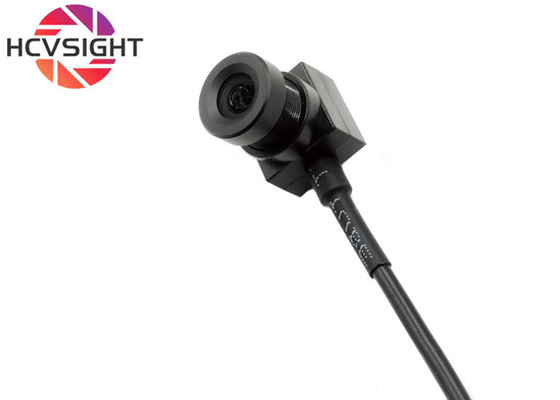

Sony 323 Chip 2MP AHD With Microphone Security Monitoring No-Distortion Camera
This AHD camera is equipped with a 1/2.8-inch distortion-free lens to ensure clear and crisp images. Due to its compact size and BNC interface, the camera is easily integrated into different devices and applications. AHD cameras are suitable for a variety of applications, including surveillance systems, video conferencing, machine vision and robotics. Its high-quality imaging capabilities make it ideal for applications requiring clear, detailed images. Overall, the AHD camera is a reliable, high-performance camera that lives up to one's imagination.
| Sensor | 1/2.8" | ||||||
| Pixel | 2MP | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 1920X1080 25fps | ||||||
| Audio | nonsupport | ||||||
| Frequency operating voltage | DC 12v | ||||||
| Product dimensions | 15mmx15mm | ||||||
| White balance | Automatic | ||||||
| Operating temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| Model No | HCA-WJB152 | ||||||
| Intenface type | BNC | ||||||
| Cable length | Default | ||||||
| Lens | EFL:3mm | ||||||
| F.ON:2.2 | |||||||
| Distortion: <-1.0% | |||||||
| Element:4E+IR | |||||||
| Angle:D=95° H=83° V=55° | |||||||
| Chip Type | COMS | ||||||
| Support OS | WinXP/Vista/Win7/Win8/Win10/Linux | ||||||
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Our product customization services allow you to tailor the HCA-WJB152 Camera to your specific needs. Whether you need an industrial camera lens, aerial camera lens, or IP camera lens, we can work with you to provide the best solution for your application. Contact us to discuss your customization options.
The USB Camera Module product technical support and services include:
