| Brand Name: | HCVsight |
| Model Number: | HC-WJB3.6 |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

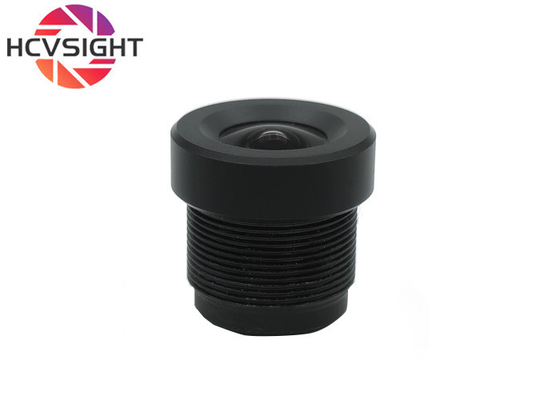

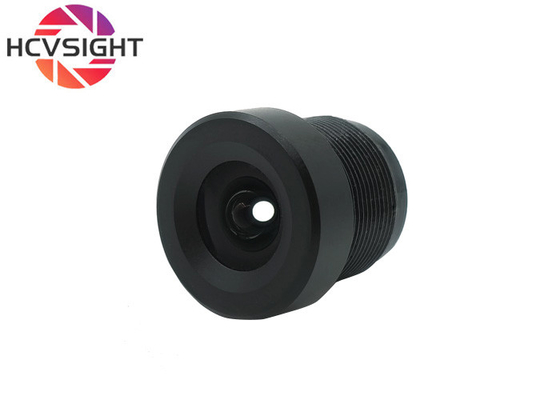

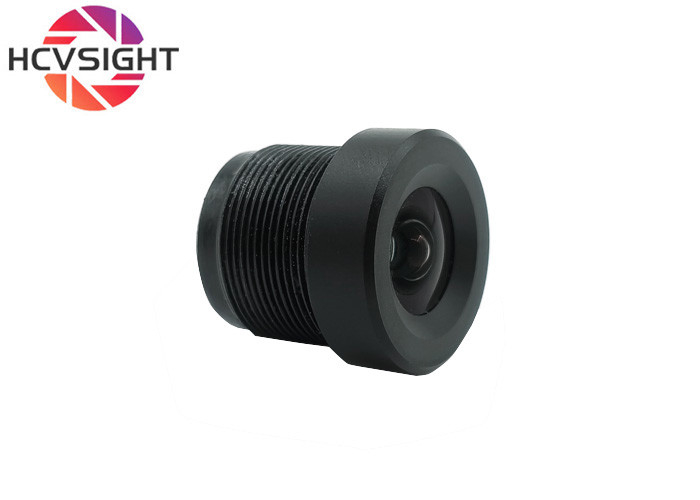

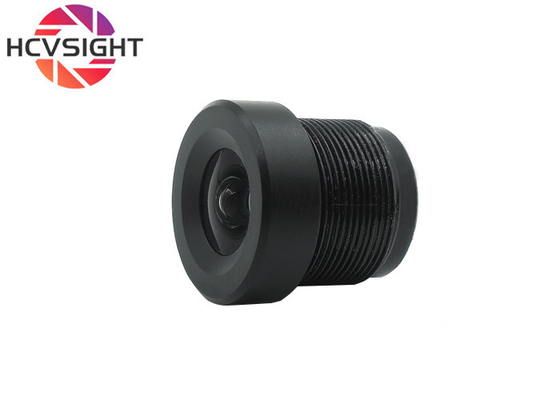

No Distortion Face Recognition AI Robot Binocular Recognition Lens
We grandly launch a lens product with excellent performance, with an ideal focal length of 3.6mm, a unique viewing angle of 90°, 2 million HD pixels and an advanced 1/2.9-inch CMOS sensor, which will bring you an excellent visual experience. The lens focal length is set to 3.6mm, and this classic focal length is excellent in many application scenarios. It captures the picture just right, providing a comfortable viewing range, neither missing key information due to too narrow viewing angles nor deformed or missing details due to too wide viewing angles. Whether it is indoor monitoring, small area shooting, or some equipment applications that have specific requirements for the picture range, the 3.6mm focal length can be easily and accurately present the required scenes. The special angle design of 90° gives this lens a unique advantage in field of view coverage. Compared with conventional angle lenses, the 90° viewing angle can capture the scene more widely, reduce shooting blind spots, and provide more comprehensive information. This feature makes it irreplaceable in certain specific scenarios, such as corner monitoring and narrow space shooting, greatly improving the coverage and practicality of the picture.
| TTL | 15.9 | |||||
| EFL | 3 | |||||
| F/NO | 2.2 | |||||
| BFL | 3mm | |||||
| MBF | / | |||||
| MAX IMAGE CIRCLE | / | |||||
| MAX FOV | 95° | |||||
| Consturction | 4E+IR | |||||
| FOV | Sensor size | 1/2.9" | ||||
| Distortion | <-1.00% | |||||
| CRA | / | |||||
| Angle: | D=95° | |||||
| H=83° | ||||||
| V=55° | ||||||
| Relative illumination:/ | ||||||
| Operation temperature | -20℃~+80℃ | |||||
| Thresd Size | M12 | |||||
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2,Good compatibility,camera module is compatible with various operating systems, windows system, Android system, linux system, Raspberry Pi, etc.
3, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Brand Name: HCVsight
Model Number: HC-WJB3.6
Place of Origin: ShenZhen,China
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Anti-static bag in Paper box(110mmx93mm41mm)
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Color: Black
Compatibility: Windows/Mac/Linux/Andriod
Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.
High pixels, 1mp 2mp 4mp 5mp 8mp 12mp and other highest pixel reached 12 million. There is a fixed focal length and autofocus, Product size is diversified, the same pixel size can be selected, the product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc.At the same time, the size can be extremely small, and it can be said that the smallest products on the market currently (only AHD / USB / CVBS, no storage, no transmission function).Which can be independently selected according to the application scenario.
Our USB camera products come with comprehensive technical support and service to ensure you get the best experience. Our team of experts are always available to help you with any questions or queries you have about our products.
We provide the following technical support and services:
Our goal is to provide you with the highest level of customer satisfaction and support. If you need any assistance with your USB camera products, please feel free to contact us.
