| Brand Name: | HCVsight |
| Model Number: | HCA-M122 |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

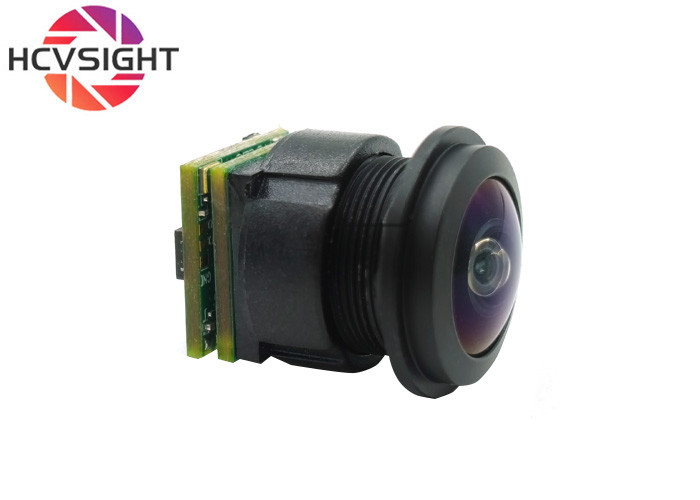

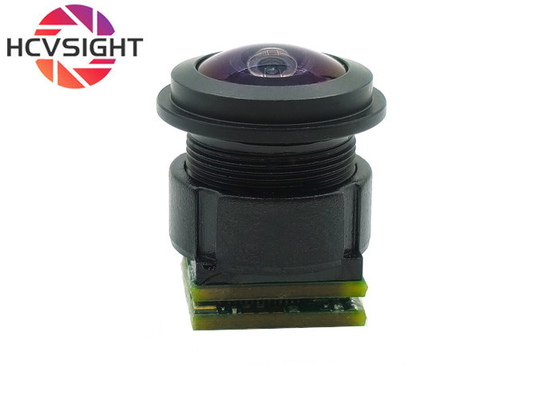

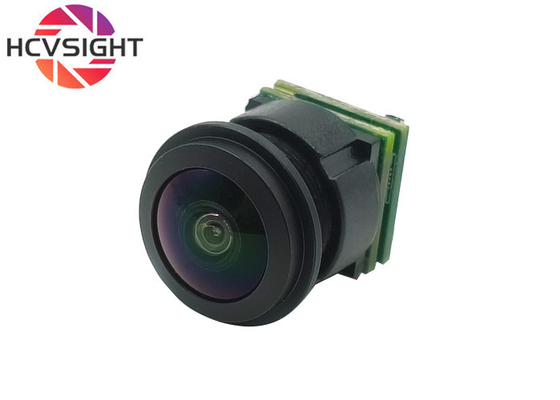

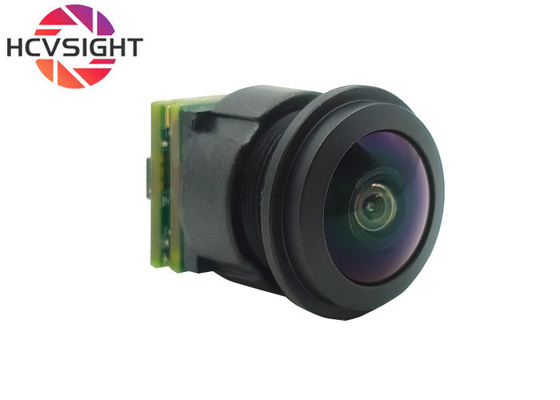

AHD Camera Module 2MP HD Equipment Image Transmission Camera Chip
With its high pixel imaging, ultra-large viewing angle and compact size, this AHD 2 million high-definition pixel camera module uses an advanced 1/2.8-inch CMOS sensor with powerful photosensitive capabilities and can be clear and delicate in various light conditions. And realistic colors to capture every wonderful moment for you. It is equipped with a panoramic 166° lens, which brings an amazing broad field of view, covering almost all-round scenes, greatly reducing monitoring blind spots. Whether it is the overall monitoring of large spaces or the details of complex environments, it can be easily competent. The product size is only 12mm x 12mm. It has such a small and exquisite design that is highly adapted to all kinds of equipment and scenarios that require strict space, releasing unlimited visual potential in a limited space, helping you realize various innovative designs and applications. .
| Sensor | 1/2.8" | ||||||
| Pixel | 2MP | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 1920X1080 25fps | ||||||
| Audio | nonsupport | ||||||
| Frequency operating voltage | DC 3.3v | ||||||
| Product dimensions | 12mmx12mm | ||||||
| White balance | Automatic | ||||||
| Operating temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| Model No | HCA-M122 | ||||||
| Intenface type | BNC | ||||||
| Cable length | Default | ||||||
| Lens | EFL:1.96mm | ||||||
| F.ON:2.0 | |||||||
| Distortion: <-17% | |||||||
| Element:2G4P+1IR | |||||||
| Angle:D=166° H=149° V=90° | |||||||
| Chip Type | COMS | ||||||
| Support OS | WinXP/Vista/Win7/Win8/Win10/Linux |
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2,Good compatibility,AHD camera module is compatible with various operating systems, windows system, linux system, Raspberry Pi, etc.
3, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
4, Extreme size: Our AHD / USB / CVBS camera module without storage and transmission is the smallest size of its kind on the market.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Our product customization services allow you to tailor the HCA-M122 Camera Module to your specific needs. Whether you need an industrial camera lens, aerial camera lens, or IP camera lens, we can work with you to provide the best solution for your application. Contact us to discuss your customization options.
The Camera Module Lens product comes with a range of technical support and services, including:
