| Brand Name: | HCVsight |
| Model Number: | HCU-M125 |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

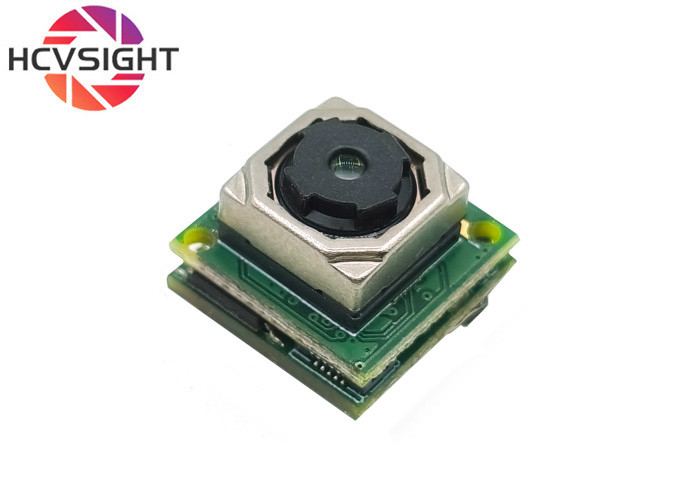

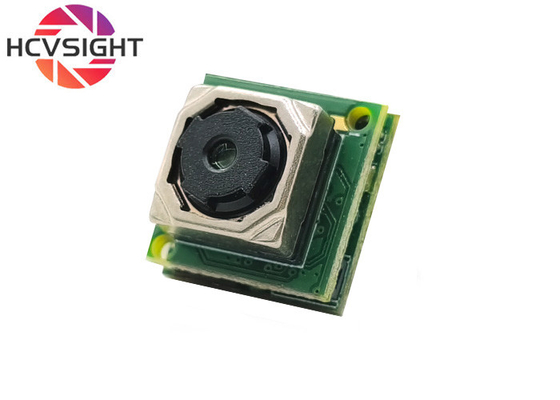

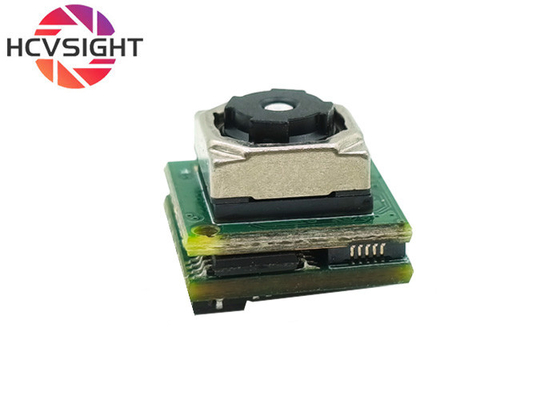

5 MP High-Definition USB Camera Module Eye Contact Camera Module With Microphone
This is an 5 million USB camera autofocus with microphone camera module, it has 5 million pixels, clear picture quality. It also uses advanced autofocus technology to quickly lock on the target. The built-in microphone can clearly capture the surrounding sound, whether it is a meeting, speech or video chat, to provide high-quality audio effects.
This camera module is suitable for a variety of scenarios, such as video conferencing, all-in-one computer, advertising machine, online teaching, live broadcasting, monitoring, etc., to meet your different needs.
Choose our 5 million USB camera autofocus with microphone camera module for a clear, convenient visual and audio experience.
| Sensor | 1/4" | ||||||
| Pixel | 5MP | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 2560X1440 30fps | ||||||
| Audio | support | ||||||
| Frequency operating voltage | DC 5v | ||||||
| Product dimensions | 12mmx12mm | ||||||
| White balance | Automatic | ||||||
| Operating temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| Model No | HCU-M125 | ||||||
| Intenface type | USB2.0 | ||||||
| USB cable length | Default 2m | ||||||
| Lens | EFL:3.57mm | ||||||
| F.ON:2.0 | |||||||
| Distortion: <1.5% | |||||||
| FBL:4.1mm | |||||||
| Angle:D=77.6° H=65.2° V=51.6° | |||||||
| Chip Type | COMS | ||||||
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC Android |
||||||
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2,Good compatibility,camera module is compatible with various operating systems, windows system, Android system, linux system, Raspberry Pi, etc.
3, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
4,Eye Contact technology:Unique eye contact technology allows you to make more natural eye contact with each other during video calls. As if the other person is beside you, make your communication more real and cordial.
5,Equipped with a lens cover and built-in microphone to protect the lens when not in use.
6,There is a built-in microphone: that you can communicate with objects through the microphone for a more natural and intuitive interactive experience.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Our product customization services allow you to tailor the HCU-M125 Camera Module to your specific needs. Whether you need an industrial camera lens, aerial camera lens, or IP camera lens, we can work with you to provide the best solution for your application. Contact us to discuss your customization options.
The Camera Module Lens product comes with a range of technical support and services, including:
