| Brand Name: | HCVsight |
| Model Number: | HCU-M121 |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

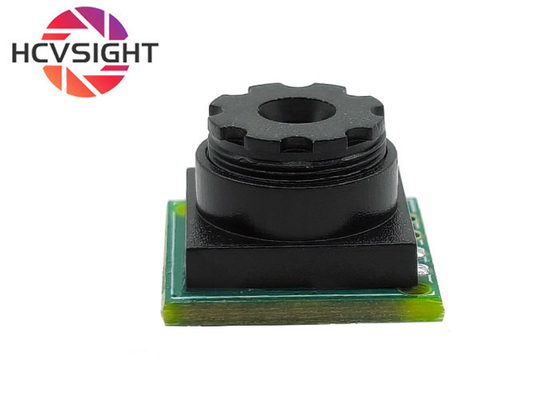

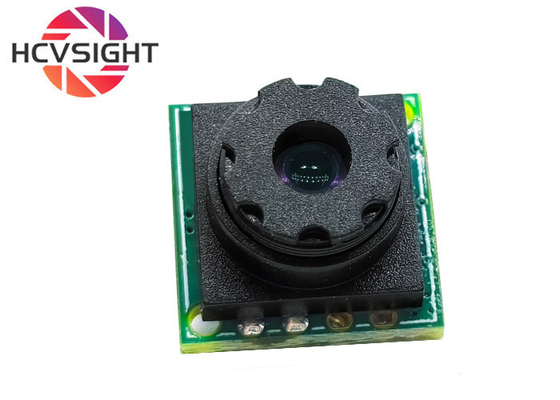

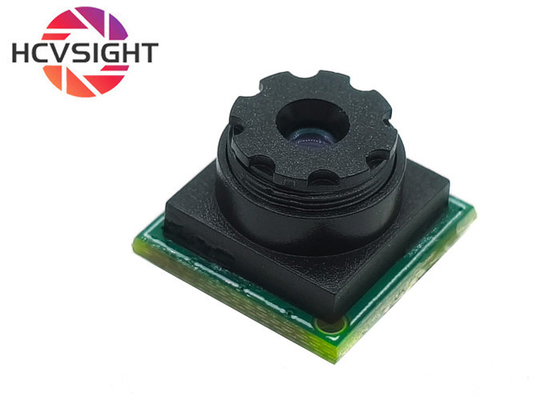

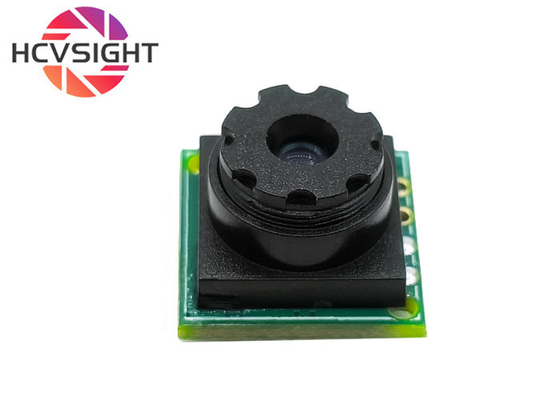

1 Million HD USB Camera Module Video Conferencing Eye Contact Camera Module
This is a 1MP USB camera module that is widely used and very cheap. It is a COMS sensor with 1/4" and even with such low resolution, it performs very well. Because the pictures are stable, prominent and cheap, it is widely used in many consumer electronics fields, we can even use software to make it reach Outputs at 720p and 960p resolutions.
| Sensor | 1/4" | ||||||
| Pixel | 1MP | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 1280x720 30fps | ||||||
| Audio | nonsupport | ||||||
| Frequency operating voltage | DC 5v | ||||||
| Product dimensions | 12mmx12mm | ||||||
| White balance | Automatic | ||||||
| Operating temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| Model No | HCU-M121 | ||||||
| Intenface type | USB2.0 | ||||||
| USB cable length | Default 2m | ||||||
| Lens | EFL:3mm | ||||||
| F.ON:2.0 | |||||||
| Distortion: <-1% | |||||||
| Element:4E+IR | |||||||
|
Angle:95° |
|||||||
| Chip Type | COMS | ||||||
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC Android |
||||||
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2,Good compatibility, USB camera module is compatible with various operating systems, windows system, Android system, linux system, Raspberry Pi, etc.
3, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
4,Plug and play:The USB interface is super convenient to avoid cumbersome drive installation.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Brand Name: HCVsight
Model Number: HCU-M121
Place of Origin: ShenZhen,China
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Anti-static bag in Paper box(110mmx93mm41mm)
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 100000/pieces/mouth
Color: Green
Compatibility: Windows/Mac/Linux
Interface: USB 2.0
Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.
Pixels:1mp 2mp 4mp 5mp 8mp 12mp and other highest pixel reached 12 million. There is a fixed focal length and autofocus, Product size is diversified, the same pixel size can be selected, the product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc.At the same time, the size can be extremely small, Our AHD / USB / CVBS camera module without storage and transmission is extremely small and the smallest of its kind on the market.
Our USB Camera Module product comes with comprehensive technical support and services to ensure that you have the best experience possible. Our team of experts is always available to help you with any issues or questions you may have regarding the product.
We offer the following technical support and services:
Our goal is to provide you with the highest level of customer satisfaction and support. Please do not hesitate to contact us if you need any assistance with your USB Camera product.
