| Brand Name: | HCVsight |
| Model Number: | HCU-M282 |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

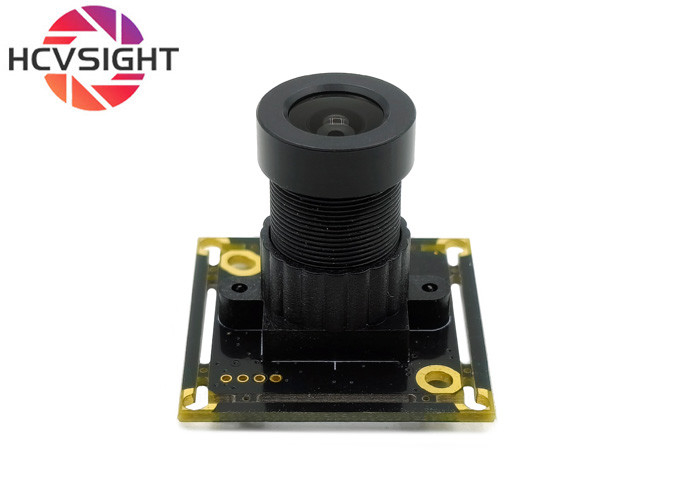

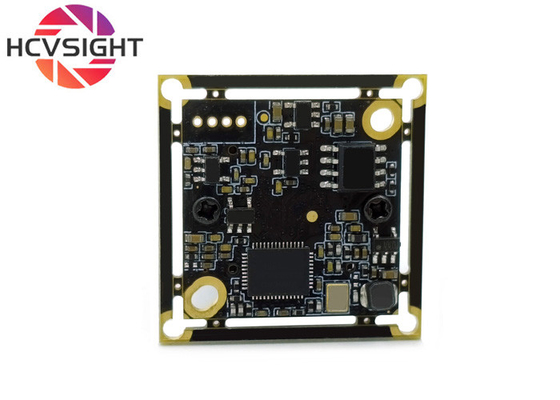

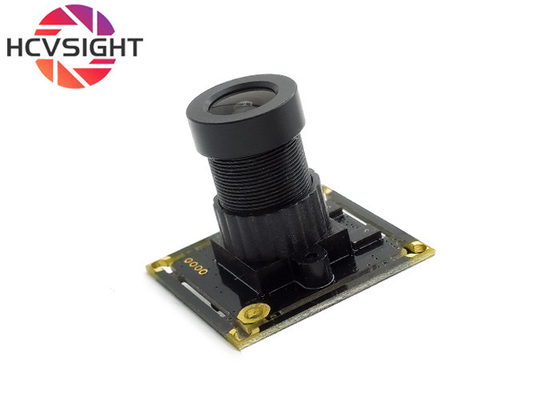

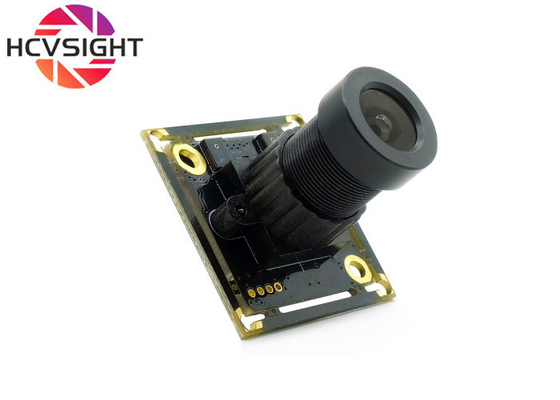

2MP High Definition USB Camera Module Machine Vision Surveillance Camera Chip
This USB HD 2MP camera module works seamlessly with Android and Windows devices to ensure users can easily integrate the lens into their existing settings. Can be used with a variety of devices, the camera module lens uses a 1/2.9-inch CMOS sensor, whether you use it as an IP camera, aerial camera or for other purposes, this sensor size ensures your image is clear, clear and Full of vitality. The product is 28x28mm in size and can be easily mounted on a variety of cameras. Overall, the camera module is an excellent product designed for the camera.
| Sensor | 1/2.9" | ||||||
| Pixel | 2MP | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 1920X1080 30fps | ||||||
| Audio | support | ||||||
| Frequency operating voltage | DC 5v | ||||||
| Product dimensions | 28mmx28mm | ||||||
| White balance | Automatic | ||||||
| Operating temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| Model No | HCU-M282 | ||||||
| Intenface type | USB2.0 | ||||||
| USB cable length | Default 2m | ||||||
| Lens | EFL:3mm | ||||||
| F.ON:2.2 | |||||||
| Distortion: <-1.0% | |||||||
| Element:4E+IR | |||||||
| Angle:D=95° H=83° V=55° | |||||||
| Chip Type | COMS | ||||||
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC Android |
||||||
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2,Good compatibility,USB camera module is compatible with various operating systems, windows system, Android system, linux system, Raspberry Pi, etc.
3, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
4, Extreme size: Our AHD / USB / CVBS camera module without storage and transmission is the smallest size of its kind on the market.
5,Audio support: You can communicate with objects through the microphone for a more natural and intuitive interactive experience.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.
Pixels:1mp 2mp 4mp 5mp 8mp 12mp and other highest pixel reached 12 million. There is a fixed focal length and autofocus, Product size is diversified, the same pixel size can be selected, the product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc.At the same time, the size can be extremely small, Our AHD / USB / CVBS camera module without storage and transmission is extremely small and the smallest of its kind on the market.
The Camera Module Lens product comes with a range of technical support and services, including:
