| Brand Name: | HCVsight |
| Model Number: | HCC-M23D |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

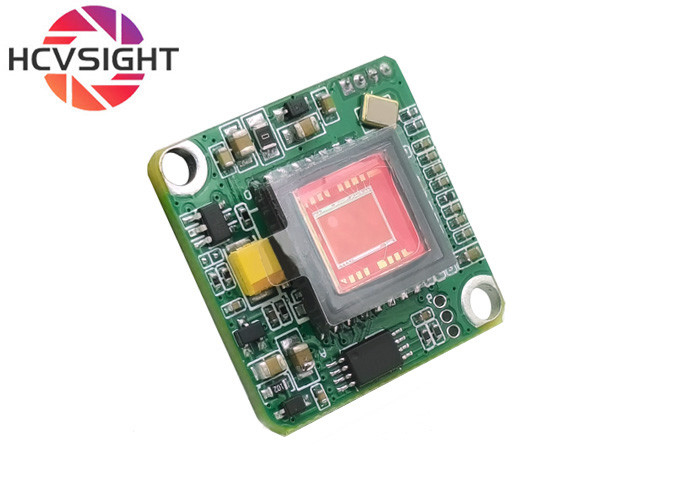

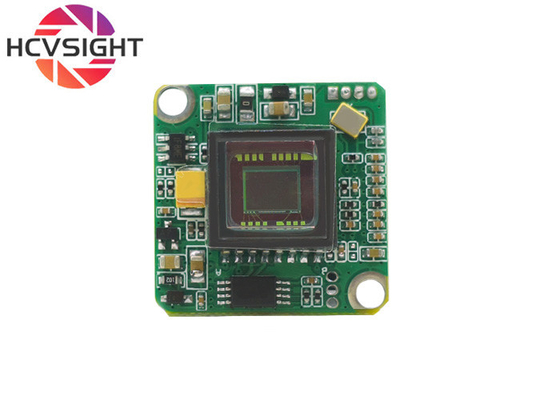

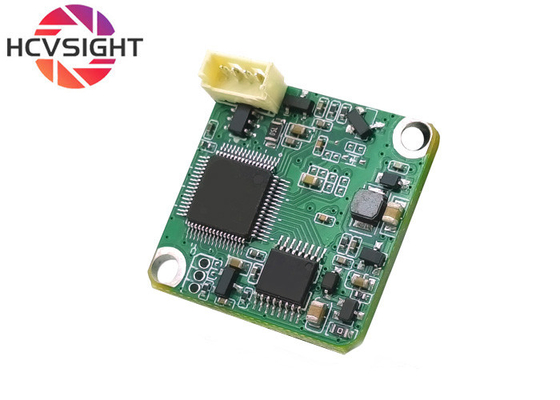

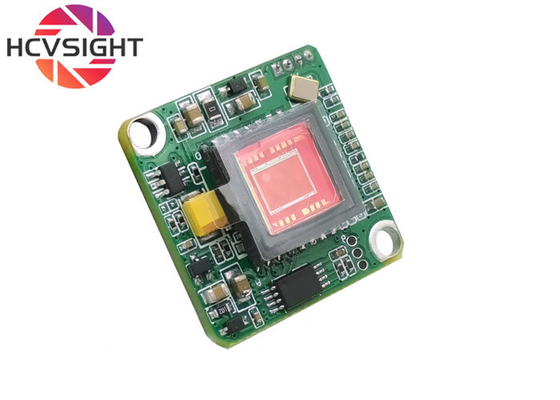

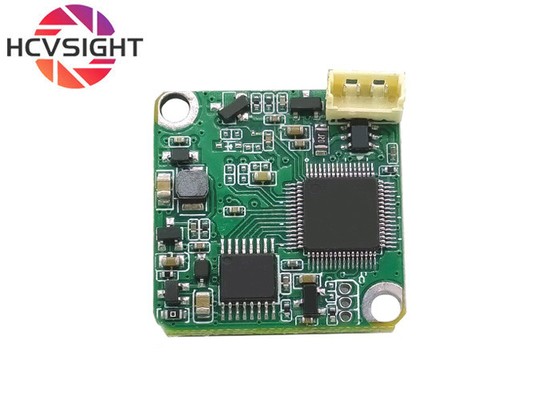

Sony CCD Camera Movement 700,000 High-Definition CVBS Square Camera Module
This CVBS 700-megapixel Sony CCD camera module combines advanced technology and excellent quality to bring you an excellent visual experience. It uses a 1/3-inch CCD sensor, and this sensor size provides a good basic guarantee for image acquisition. It has high sensitivity and low noise characteristics, and can present a purer image. Judging from the size specifications, the module is 23mm x 23mm, and its compact and exquisite design makes it extremely flexible in installation and application. Whether embedded in small devices or used in environments with limited space, it can be easily adapted without being limited by volume problems. In addition, it outputs signals through the CVBS interface. This interface is highly compatible and convenient to connect with a variety of display devices and recording devices, providing convenience for your subsequent use. You don’t need to worry about compatibility issues and can quickly build a complete visual system. . With its excellent pixel performance, high-quality
| Sensor | 1/3" | ||||||
| Pixel | 700,000-Pixel | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 1020X596 50fps | ||||||
| Audio | nonsupport | ||||||
| Frequency operating voltage | DC 12v | ||||||
| Product dimensions | 23mmx23mm | ||||||
| White balance | Automatic | ||||||
| Operating temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| Model No | HCC-M23D | ||||||
| Intenface type | BNC | ||||||
| Chip model | NVP2090+811 | ||||||
| Lens | EFL:3mm | ||||||
| F.ON:2.2 | |||||||
| Distortion: <-1.0% | |||||||
| Element:4E+IR | |||||||
| Angle:D=95° H=83° V=55° | |||||||
| Chip Type | COMS | ||||||
| Support OS | WinXP/Vista/Win7/Win8/Win10/Linux | ||||||
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2,Good compatibility,CVBS camera module is compatible with various operating systems, windows system, linux system, Raspberry Pi, etc.
3, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
4, Extreme size: Our AHD / USB / CVBS camera module without storage and transmission is the smallest size of its kind on the market.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Our product customization services allow you to tailor the HCC-M23D Camera Module to your specific needs. Whether you need an industrial camera lens, aerial camera lens, or IP camera lens, we can work with you to provide the best solution for your application. Contact us to discuss your customization options.
The Camera Module Lens product comes with a range of technical support and services, including:
