| Brand Name: | HCVsight |
| Model Number: | HCC-CCDM18 |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

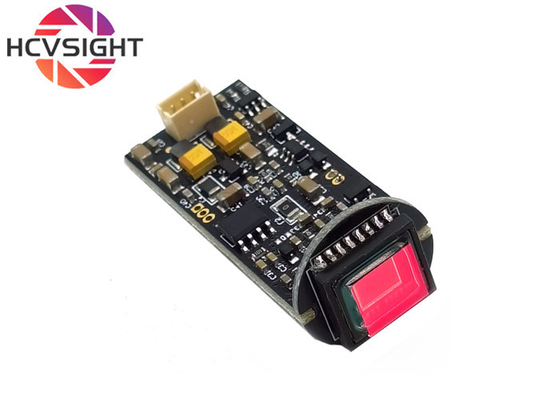

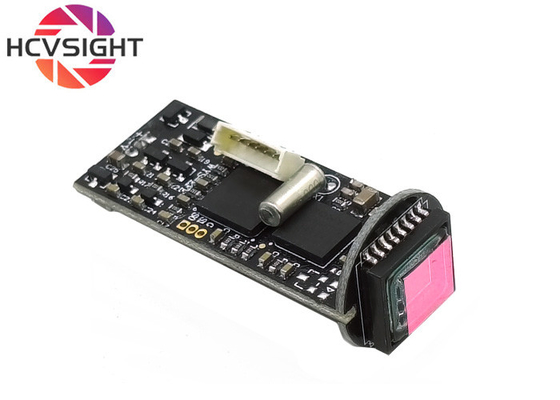

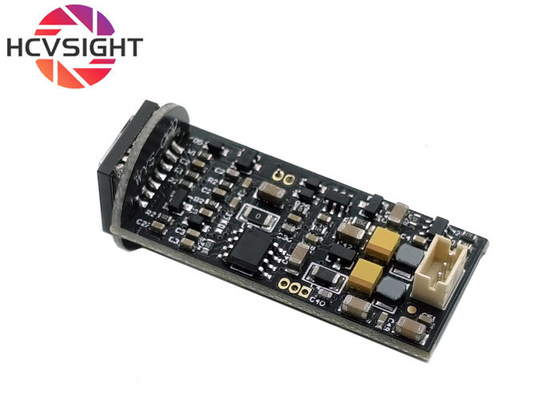

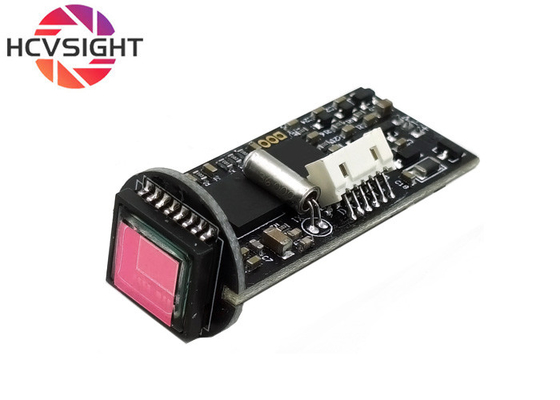

Sony CCD811 Camera Movement HD 700 Line Analog Signal Bullet Camera Module
CVBS 70 MP SONY CCD camera module, designed to pursue high quality visual capture application scenarios.
Excellent imaging core: using 1 / 3 inch SONY CCD sensor, with 700,000 pixels, can present clear, delicate image effect. The SONY CCD sensor is famous for its excellent color reduction, high sensitivity and low noise performance, which can accurately capture every detail in both everyday environment and complex light scenes, bringing you real and vivid images.
Standard CVBS output: support CVBS video signal output, the widely used analog video signal standard, make it can easily compatible with various traditional equipment, such as old monitoring system, specific industrial equipment display terminal, etc., without complex conversion process, can quickly realize the connection between equipment and image transmission, greatly reduces the difficulty and cost of system integration.
Exquisite design, flexible installation: the product size is only 18mm x 43mm, such a small size, in the installation and integration process shows a great advantage. It can be flexibly embedded into a variety of devices or systems with demanding space requirements, whether it is small intelligent devices, portable instruments, or monitoring devices with high requirements for compact layout, which can be perfectly adapted, providing more possibilities for your project design.
Stable and reliable, durable: in the design and manufacturing process of the camera module, strictly follow high quality standards, choose high quality materials and advanced technology, to ensure good stability and reliability. Whether in the long time of continuous work, or in the face of different environmental temperature, humidity and other conditions changes, can operate steadily, to provide you with continuous and reliable image acquisition services.
The CVBS 70 megapixel SONY CCD camera module, ideal for many applications that require high-quality image capture with its excellent imaging performance, standard output interface, sophisticated design and reliable stability. Whether it is security monitoring, industrial testing, scientific research equipment, or education, medical and other fields related projects, it can help you to achieve efficient and accurate visual monitoring and information collection.
| Sensor | 1/3" | ||||||
| Pixel | 700,000 pixels | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 1020X596 50fps | ||||||
| Audio | nonsupport | ||||||
| Frequency operating voltage | DC 12v | ||||||
| Product dimensions | 18mmx43mm | ||||||
| White balance | Automatic | ||||||
| Operating temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| Model No | HCC-CCDM18 | ||||||
| Intenface type | BNC | ||||||
| Cable length | Default 1.5m | ||||||
| Lens | EFL:3mm | ||||||
| F.ON:2.2 | |||||||
| Distortion: <-1.0% | |||||||
| Element:4E+IR | |||||||
| Angle:D=95° H=83° V=55° | |||||||
| Chip Type | COMS | ||||||
| Support OS | WinXP/Vista/Win7/Win8/Win10/Linux | ||||||
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2,Good compatibility,CVBS camera module is compatible with various operating systems, windows system, linux system, Raspberry Pi, etc.
3, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
4, Extreme size: Our AHD / USB / CVBS camera module without storage and transmission is the smallest size of its kind on the market.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Our product customization services allow you to tailor the HCC-CCDM18 Camera Module to your specific needs. Whether you need an industrial camera lens, aerial camera lens, or IP camera lens, we can work with you to provide the best solution for your application. Contact us to discuss your customization options.
The Camera Module Lens product comes with a range of technical support and services, including:
