| Brand Name: | HCVsight |
| Model Number: | HCC-M18D |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100000/pieces/mouth |

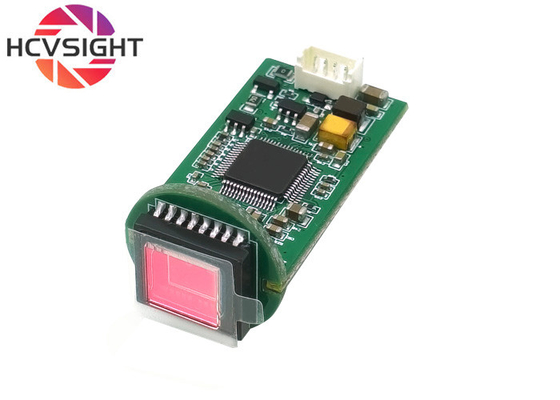

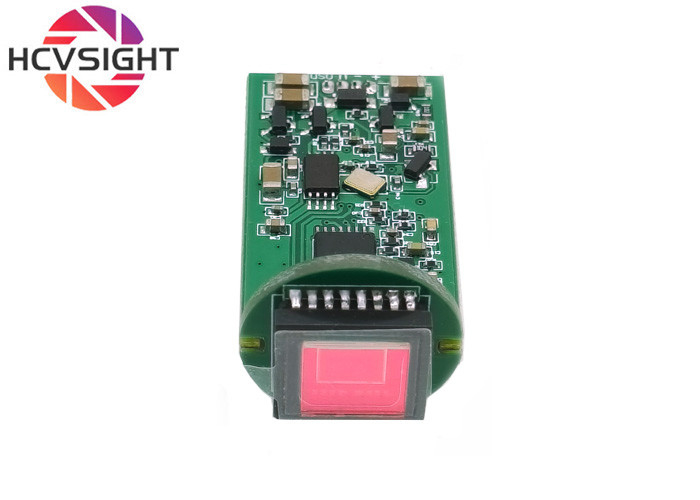

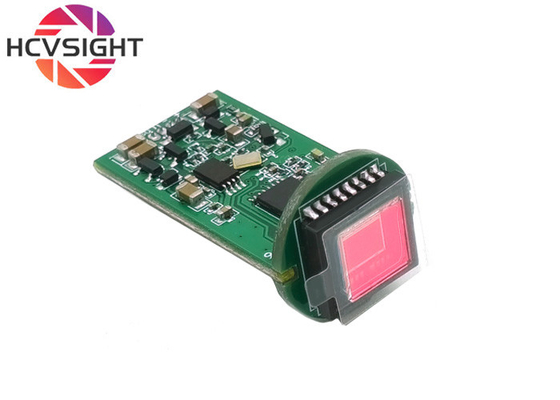

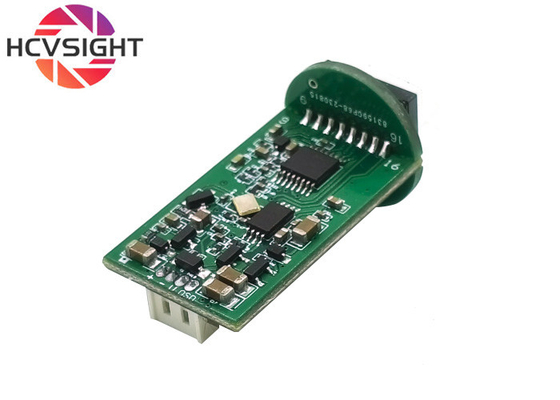

Sony CCD2090+811 Camera Movement HD 700 Line Analog Signal Bullet Camera Module
This CVBS 700,000 pixel Sony CCD camera module is a high-quality product designed specifically for the pursuit of high-quality monitoring solutions. It uses a 1/3-inch CCD sensor with 700,000 pixels, which can provide clear and delicate image effects and meet the monitoring needs in various scenarios. The camera module has excellent imaging capabilities. Its Sony CCD sensor is known for its excellent photosensitive performance and color restoration capabilities. It can effectively reduce noise and capture clear and natural images even in low-light environments. You provide reliable monitoring guarantees.With its excellent imaging performance, standard output interface, sophisticated design and reliable stability, this CVBS 700-megapixel Sony CCD camera module is ideal for a wide range of applications that require high-quality image capture. Whether it is security monitoring, industrial testing, scientific research equipment, or related projects in the fields of education, medical care, etc., it can help you achieve efficient and accurate visual monitoring and information collection.
| Sensor | 1/3" | ||||||
| Pixel | 700,000-Pixel | ||||||
| Compression format | MJPG/YUV2 | ||||||
| Frame rate | 1020X596 50fps | ||||||
| Audio | nonsupport | ||||||
| Frequency operating voltage | DC 12v | ||||||
| Product dimensions | 18mmx36.5mm | ||||||
| White balance | Automatic | ||||||
| Operating temperature | <70° | ||||||
| Power consumption | 0.25w | ||||||
| Model No | HCC-M18D | ||||||
| Intenface type | BNC | ||||||
| Cable length | Default | ||||||
| Lens | EFL:3mm | ||||||
| F.ON:2.2 | |||||||
| Distortion: <-1.0% | |||||||
| Element:4E+IR | |||||||
| Angle:D=95° H=83° V=55° | |||||||
| Chip Type | COMS | ||||||
| Support OS | WinXP/Vista/Win7/Win8/Win10/Linux | ||||||
1,Signal stability, many years of small camera module development and design experience, to avoid a lot of signal interference factors
2,Good compatibility,CVBS camera module is compatible with various operating systems, windows system, linux system, Raspberry Pi, etc.
3, High color reduction degree, decades of debugging experience of software engineering department, lighting, outdoor sunshine, stairwell dark state, look at faces, see green plants, look at flames and other simulated different environments for camera color debugging. Make the color reduction degree to achieve the best.
4, Extreme size: Our AHD / USB / CVBS camera module without storage and transmission is the smallest size of its kind on the market.
Products used to a variety of machine vision, equipment monitoring. Such as: ATM, bank to open an account, queuing, hospital inspection report, printer, vending machines, advertising machine, all-in-one, electronic said, robot, crane, patch machine, automatic welding equipment, fire water cannon, law enforcement instrument external, android mobile phone external camera, computer camera, security surveillance cameras, coal power boiler flame monitoring, certification than equipment, high meter and other machine equipment embedded.
Our product customization services allow you to tailor the HCC-M18D Camera Module to your specific needs. Whether you need an industrial camera lens, aerial camera lens, or IP camera lens, we can work with you to provide the best solution for your application. Contact us to discuss your customization options.
The Camera Module Lens product comes with a range of technical support and services, including:
